关键类

Widget关键类

Widget是对Element的配置或描述。Widget的子类主要有3类：

• RenderObjectWidget的子类，可以进行Layout、Paint等逻辑

  • SingleChildRenderObjectWidget（单子节点容器）
  • LeafRenderObjectWidget（叶子节点）
  • MultiChildRenderObjectWidget（多叶子节点容器）

• StatelessWidget和StatefulWidget，自身不具备绘制能力，用来组织和配置RenderObjectWidget类型的Widget

• ProxyWidget，具体又分为ParentDataWidget和InheritedWidget，为其子节点提供额外的数据

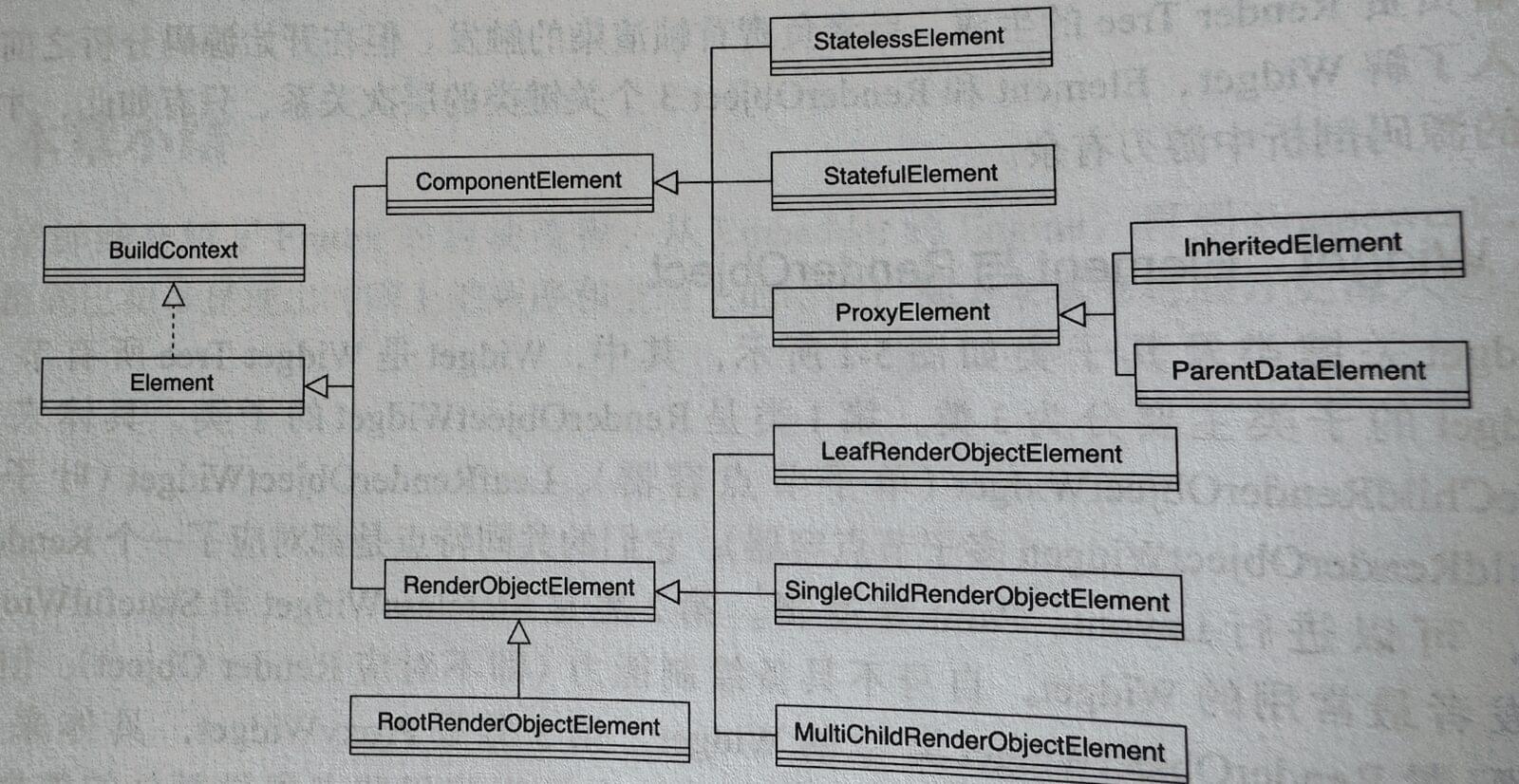

Element关键类

每个Element都有一个对应的Widget，其主要工作都处于渲染流水线的构建阶段（build）。

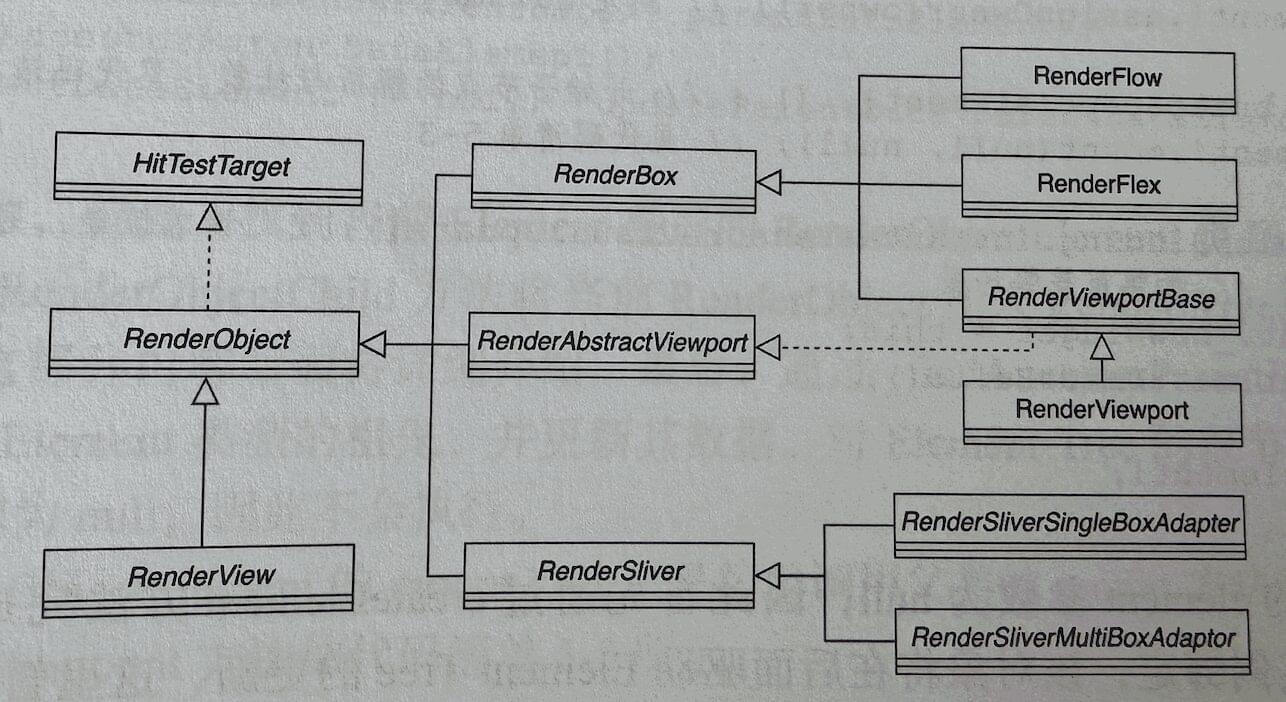

RenderObject关键类

RenderView是整个Render Tree的根节点，负责布局（layout）、绘制（paint）。

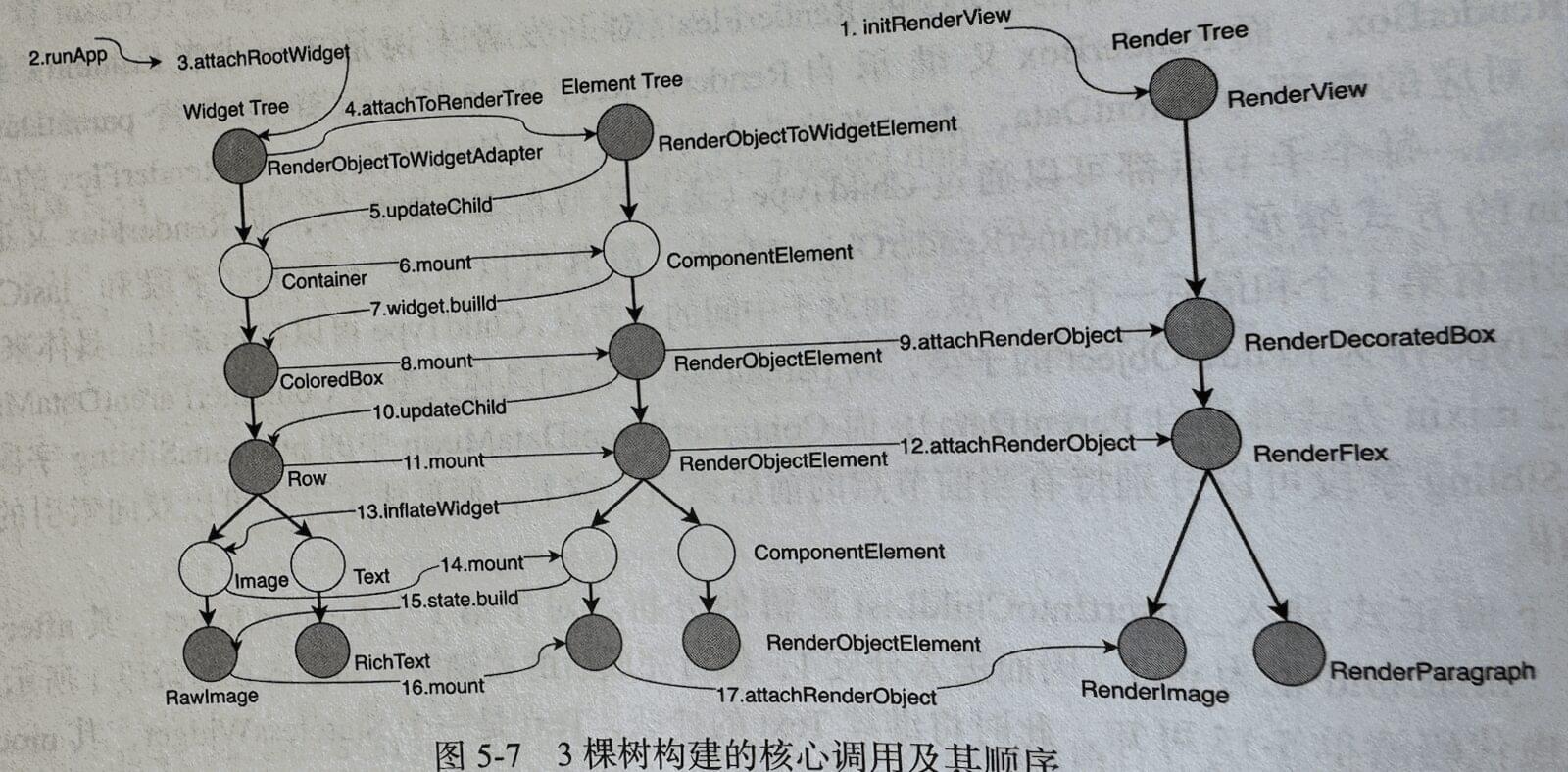

根节点构建流程

void runApp(Widget app) {
  WidgetsFlutterBinding.ensureInitialized()
    ..scheduleAttachRootWidget(app)
    ..scheduleWarmUpFrame();
}

  void scheduleAttachRootWidget(Widget rootWidget) {
    Timer.run(() {
      attachRootWidget(rootWidget);
    });
  }

  void attachRootWidget(Widget rootWidget) {
    final bool isBootstrapFrame = renderViewElement == null;
    _readyToProduceFrames = true;
    _renderViewElement = RenderObjectToWidgetAdapter<RenderBox>(
      container: renderView,
      debugShortDescription: '[root]',
      child: rootWidget,
    ).attachToRenderTree(buildOwner!, renderViewElement as RenderObjectToWidgetElement<RenderBox>?);
    if (isBootstrapFrame) {
      SchedulerBinding.instance.ensureVisualUpdate();
    }
  }


  RenderObjectToWidgetElement<T> attachToRenderTree(BuildOwner owner, [ RenderObjectToWidgetElement<T>? element ]) {
    if (element == null) {//首帧构建
      owner.lockState(() {
        element = createElement();//创建Widget对应的Element
        assert(element != null);
        element!.assignOwner(owner);//绑定BuildOwner
      });
      owner.buildScope(element!, () {//开始子节点的解析与挂载
        element!.mount(null, null);
      });
    } else {
      element._newWidget = this;
      element.markNeedsBuild();
    }
    return element!;
  }

  //binding.dart
  @override
  void mount(Element? parent, Object? newSlot) {
    assert(parent == null);
    super.mount(parent, newSlot);
    _rebuild();//开始构建
    assert(_child != null);
  }

  void _rebuild() {
    try {
      _child = updateChild(_child, (widget as RenderObjectToWidgetAdapter<T>).child, _rootChildSlot);//build整个tree
    } catch (exception, stack) {
      final FlutterErrorDetails details = FlutterErrorDetails(
        exception: exception,
        stack: stack,
        library: 'widgets library',
        context: ErrorDescription('attaching to the render tree'),
      );
      FlutterError.reportError(details);
      final Widget error = ErrorWidget.builder(details);
      _child = updateChild(null, error, _rootChildSlot);
    }
  }



  //framework.dart
  @override
  void mount(Element? parent, Object? newSlot) {
    super.mount(parent, newSlot);
    _renderObject = (widget as RenderObjectWidget).createRenderObject(this);//创建Widget对应的RenderObject
    attachRenderObject(newSlot);
    super.performRebuild(); // clears the "dirty" flag
  }


  Element? updateChild(Element? child, Widget? newWidget, Object? newSlot) {
    if (newWidget == null) {//如果新的Widget为空，则销毁child
      if (child != null) {
        deactivateChild(child);
      }
      return null;
    }
    final Element newChild;
    if (child != null) {
      bool hasSameSuperclass = true;
      if (hasSameSuperclass && child.widget == newWidget) {
        if (child.slot != newSlot) {
          updateSlotForChild(child, newSlot);
        }
        newChild = child;
      } else if (hasSameSuperclass && Widget.canUpdate(child.widget, newWidget)) {//检查新旧Widget是否可以更新，默认比较类型和key
        if (child.slot != newSlot) {
          updateSlotForChild(child, newSlot);
        }
        child.update(newWidget);
        newChild = child;
      } else {
        deactivateChild(child);
        newChild = inflateWidget(newWidget, newSlot);
      }
    } else {
      newChild = inflateWidget(newWidget, newSlot);
    }
    return newChild;
  }


  Element inflateWidget(Widget newWidget, Object? newSlot) {
    final Key? key = newWidget.key;
    if (key is GlobalKey) {//globalkey的处理
      final Element? newChild = _retakeInactiveElement(key, newWidget);
      if (newChild != null) {
        newChild._activateWithParent(this, newSlot);
        final Element? updatedChild = updateChild(newChild, newWidget, newSlot);
        return updatedChild!;
      }
    }
    final Element newChild = newWidget.createElement();//创建新的Element
    newChild.mount(this, newSlot);
    return newChild;
  }
